Features:

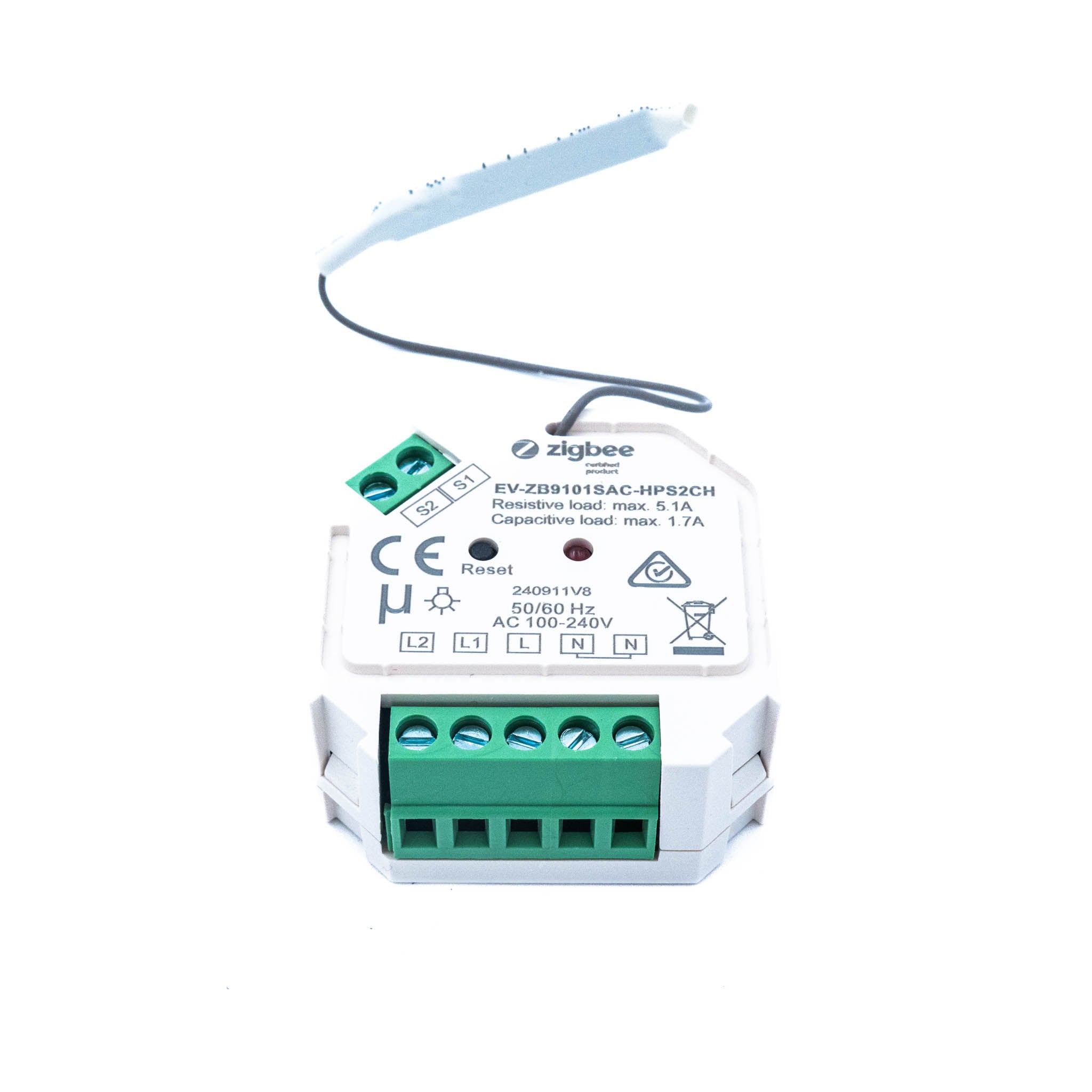

• 2-gang ZigBee in-wall switch based on latest ZigBee 3.0 protocol
• 100-240VAC wide input and output voltage
• Supports resistive loads and capacitive loads
• 2 channels output, max. load 5.1A/CH
• Input and output with screw terminals, safe and reliable
• Enables to control ON/OFF of connected load
• ZigBee device with 2 endpoints which can be controlled separately
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power switches
• Compatible with universal ZigBee gateway products
• Can be controlled by universal single wire push switch, 2 channels can be controlled separately by 2 switches
• Active power and energy metering functionality
• Mini Size, Easy to be installed into a standard wall box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

General Specification

Zigbee Protocol

Zigbee 3.0

Input Voltage

100-240VAC

Output Voltage

100-240VAC

Output Channel

2 Channels

Max. Load

Resistive load: max. 5.1A/CH

Capacitive load: max. 1.7A/CH

Input Type

Constant voltage

Dimension (LxWxH)

45.5x45x20.3mm
